K-tuned Side Mount Pullet Kit For Honda Acura K20 and K24 Engines
K-tuned Side Mount Pullet Kit For Honda Acura K20 and K24 Engines
K-tuned Side Mount Pullet Kit
Applications:
- K20A/A2/Z1/Z3
- All K24A Series Engines
Features:
- Anodized black finish for a sleek appearance
- Provides approximately 2 inches of additional clearance next to the intake manifold
- Compatible with Rotrex Supercharger Kits
Notes:
- The K24 Bracket is designed based on the CR-V bracket (11910-PPA-000) and is only suitable for similar applications listed
- Works with most K24-swapped vehicles, including RSX
- Not compatible with Accord, TSX, and Elements
- Does not fit specific chassis models with unique stock engine mount setups (2006-2011 8G Civic SI chassis, 2012-2015 9G Civic SI chassis)
Specifications:
-

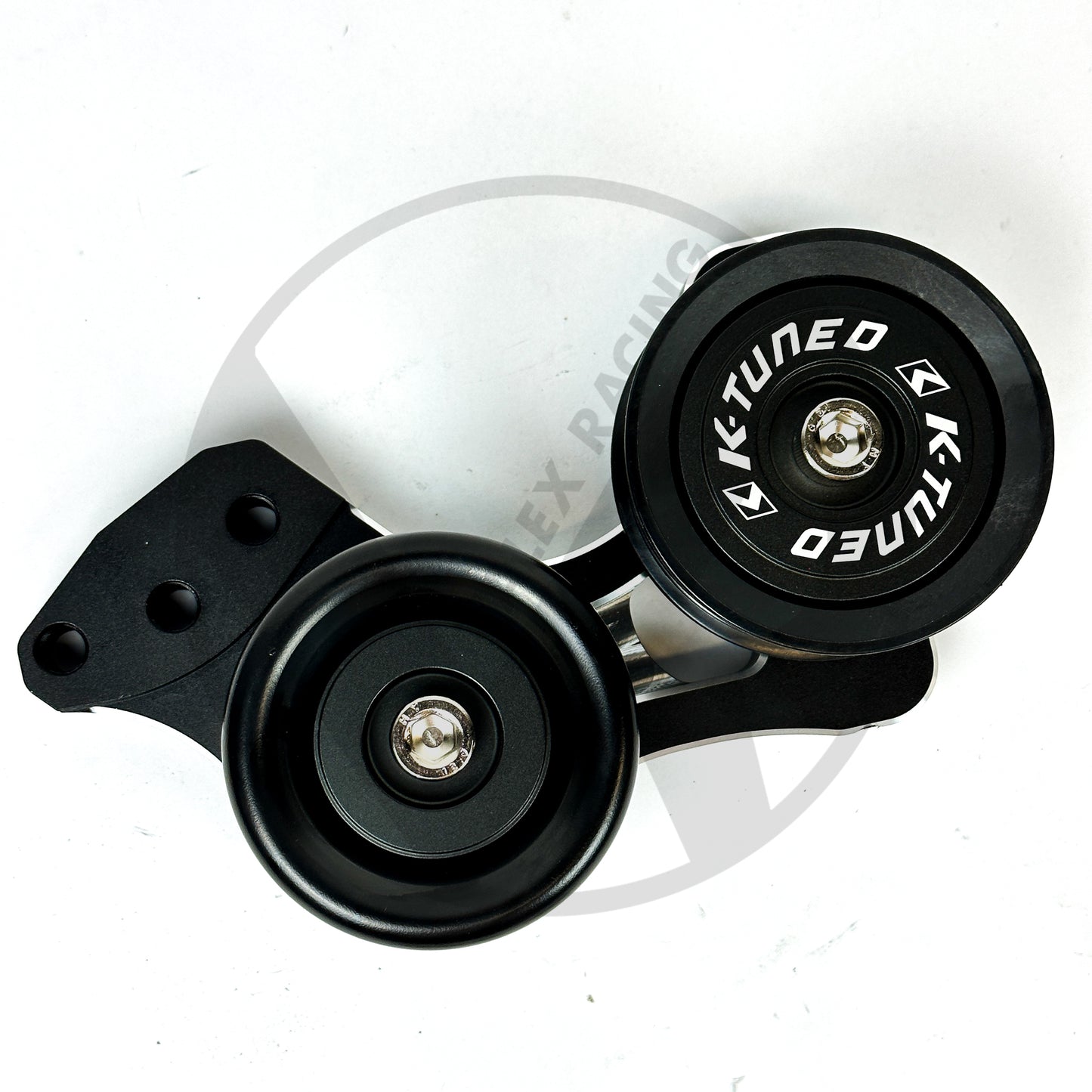

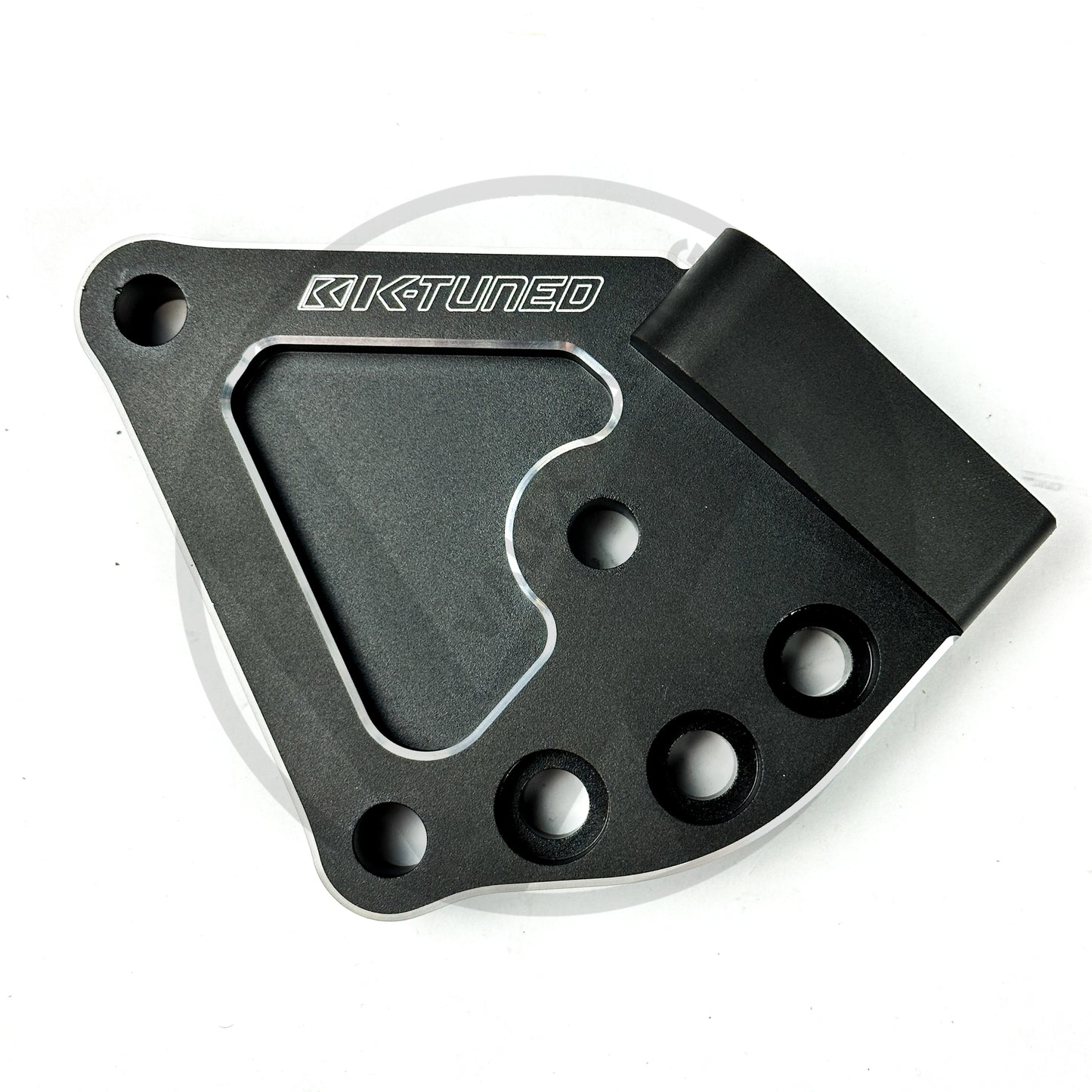

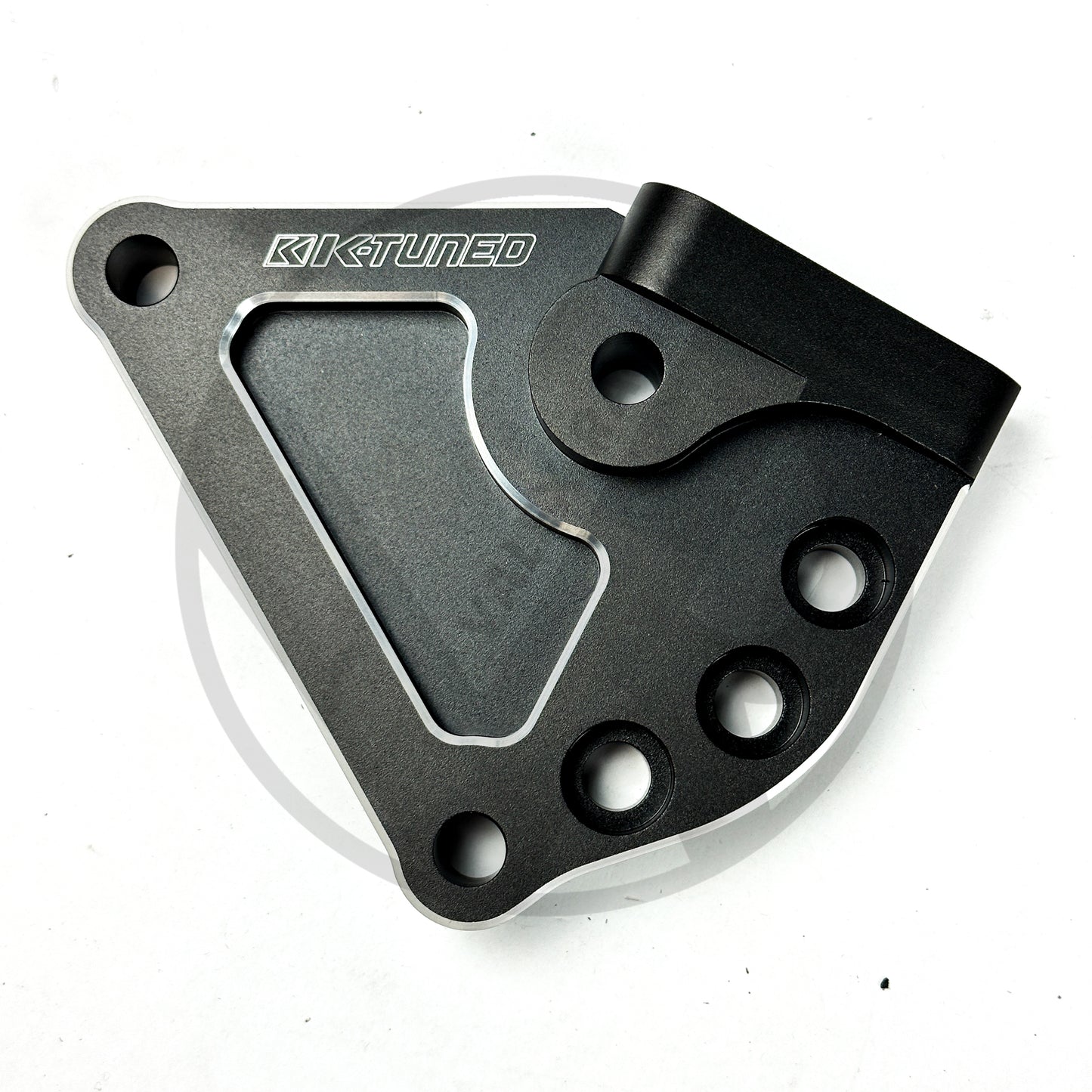

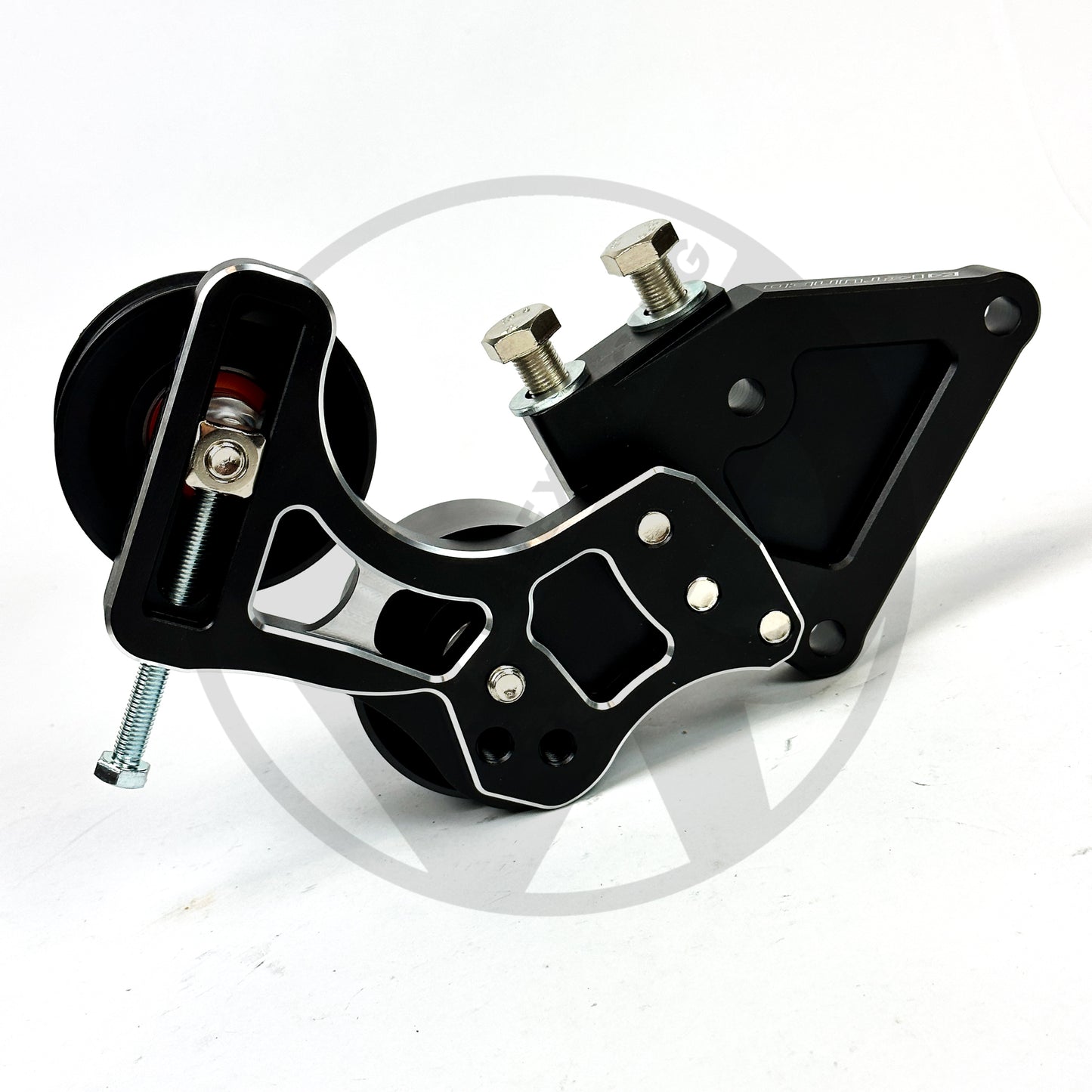

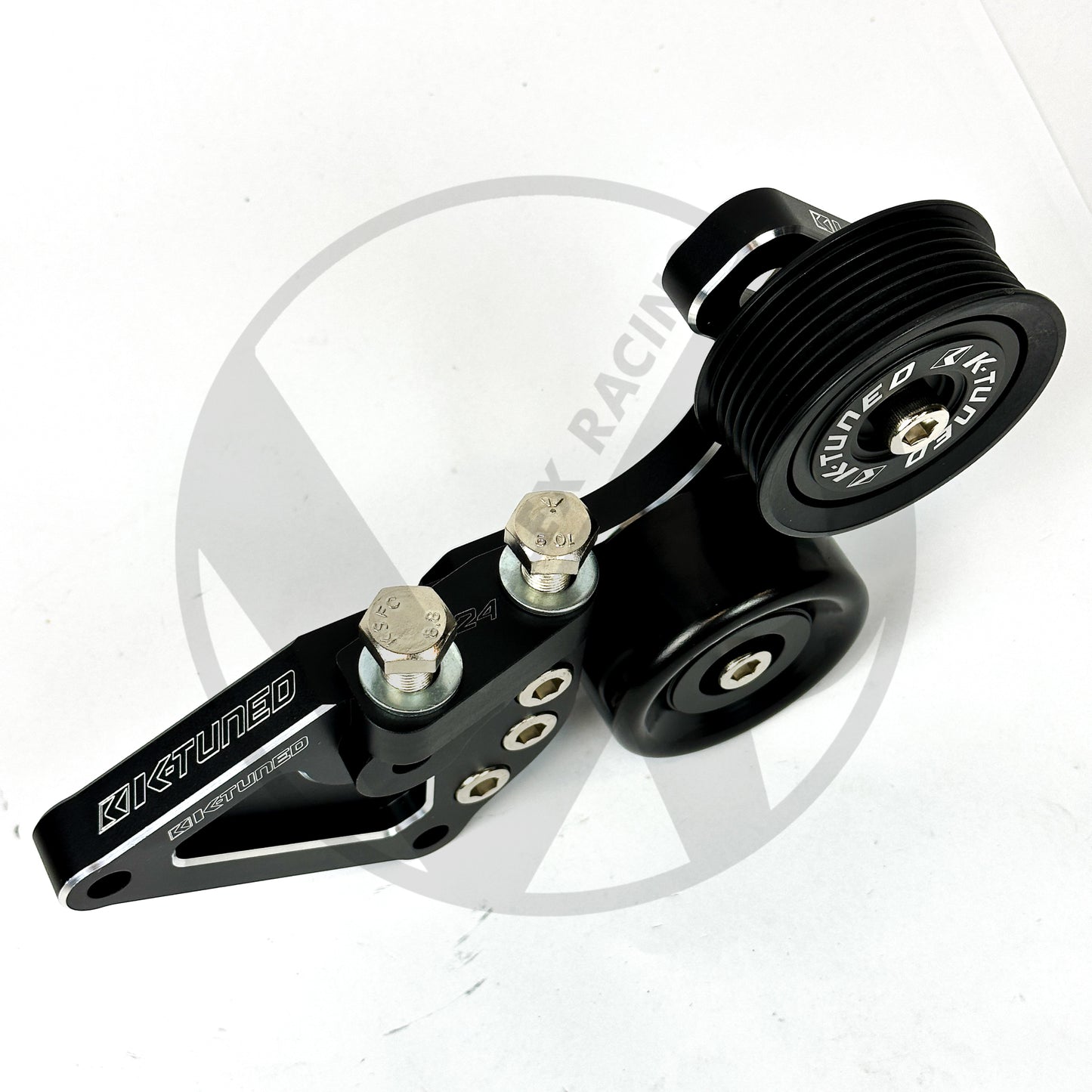

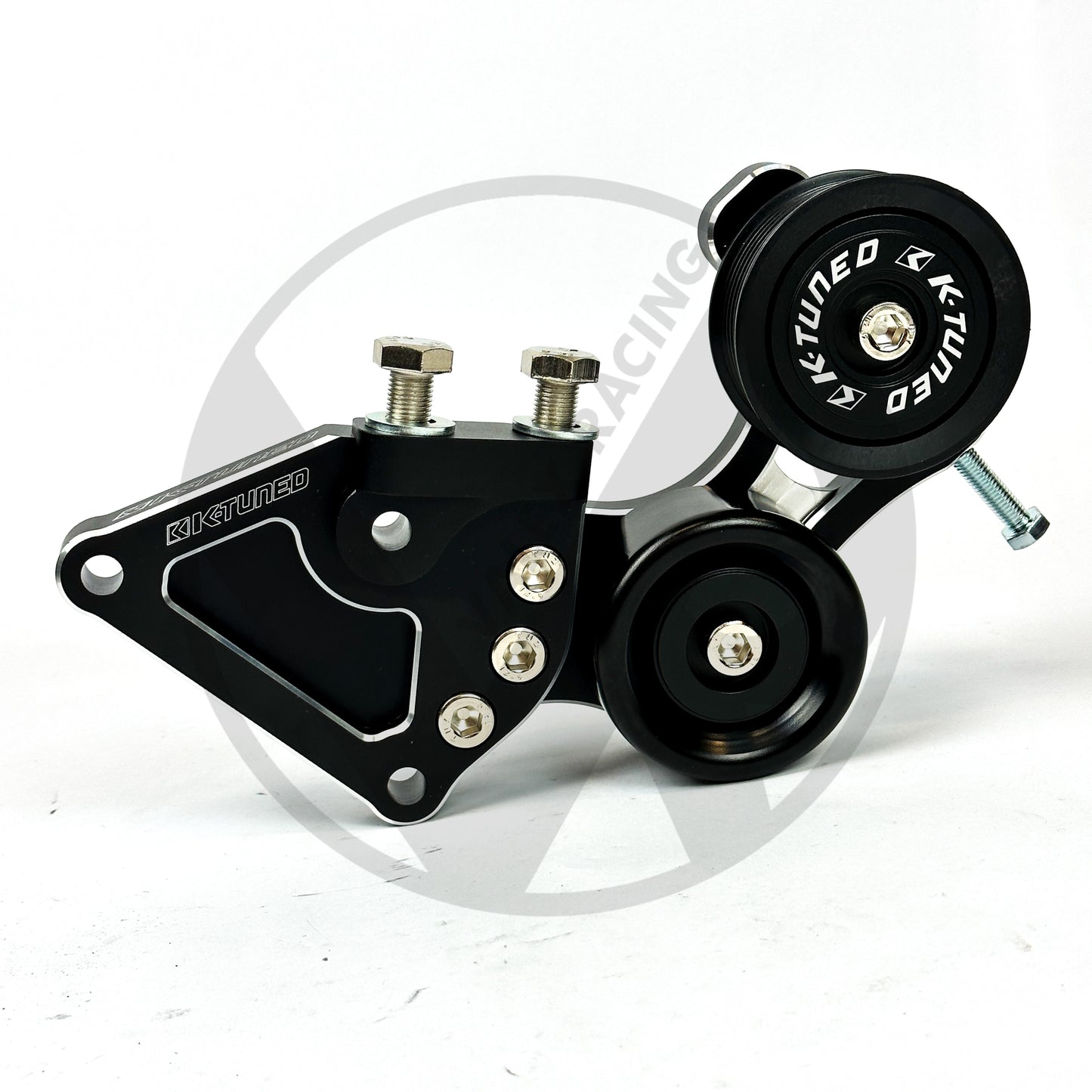

The K-Tuned Side Mount Pulley Kit combines the 2-Bolt side engine mount on the timing chain case with two adjustable pulleys
-
The kit creates a compact and robust mount/pulley combination, freeing up valuable engine bay space
-
Both pulleys are adjustable, with the black pulley offering three mounting positions and the top black pulley sliding along the bracket
-
Requires power steering delete or relocation in certain vehicles (such as pump-driven applications like the RSX)
-
Factory alternator remains in its original position, while the factory auto tensioner and idler pulley are removed for installation
-
Provides approximately 2 inches of additional clearance next to the intake manifold, allowing easier fitment of larger aftermarket intake manifolds without extensive modifications
-
Specifically designed for a clean and compatible installation with Rotrex superchargers, offering a streamlined look and the option to retain A/C functionality
-
The pulley kit offers extensive adjustability and accommodates various OEM applications and belt lengths
-
Can often be used with the existing belt, although exceptions may apply if additional accessories are deleted or if another aftermarket pulley setup is currently in use
-
CNC machined from lightweight and durable 6061 billet aluminum, ensuring strength and longevity
-
Side mount features Helicoil threading for easy and secure installation/removal without thread damage
-
Fitment is specific to the engine block, with the mount on K20 and K24 engines having slightly different bolt patterns
-
Please order the appropriate kit based on the engine block being used, as the existing side mount will be reused for mounting the new pulley kit
